K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount
K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount

K01 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base & Scope Mount

Regular price $2,795.00
Regular price Sale price $2,795.00
Shipping calculated at checkout.

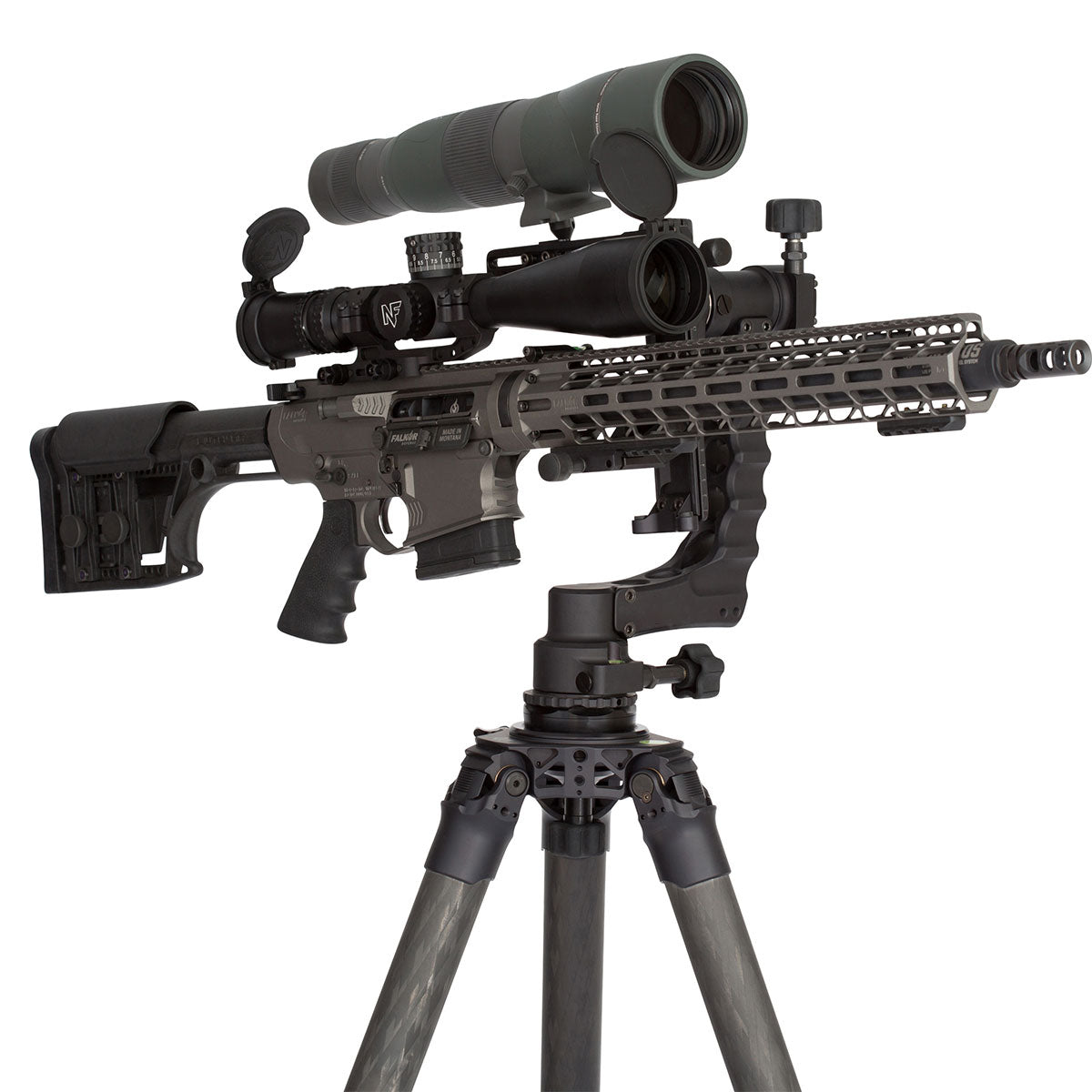

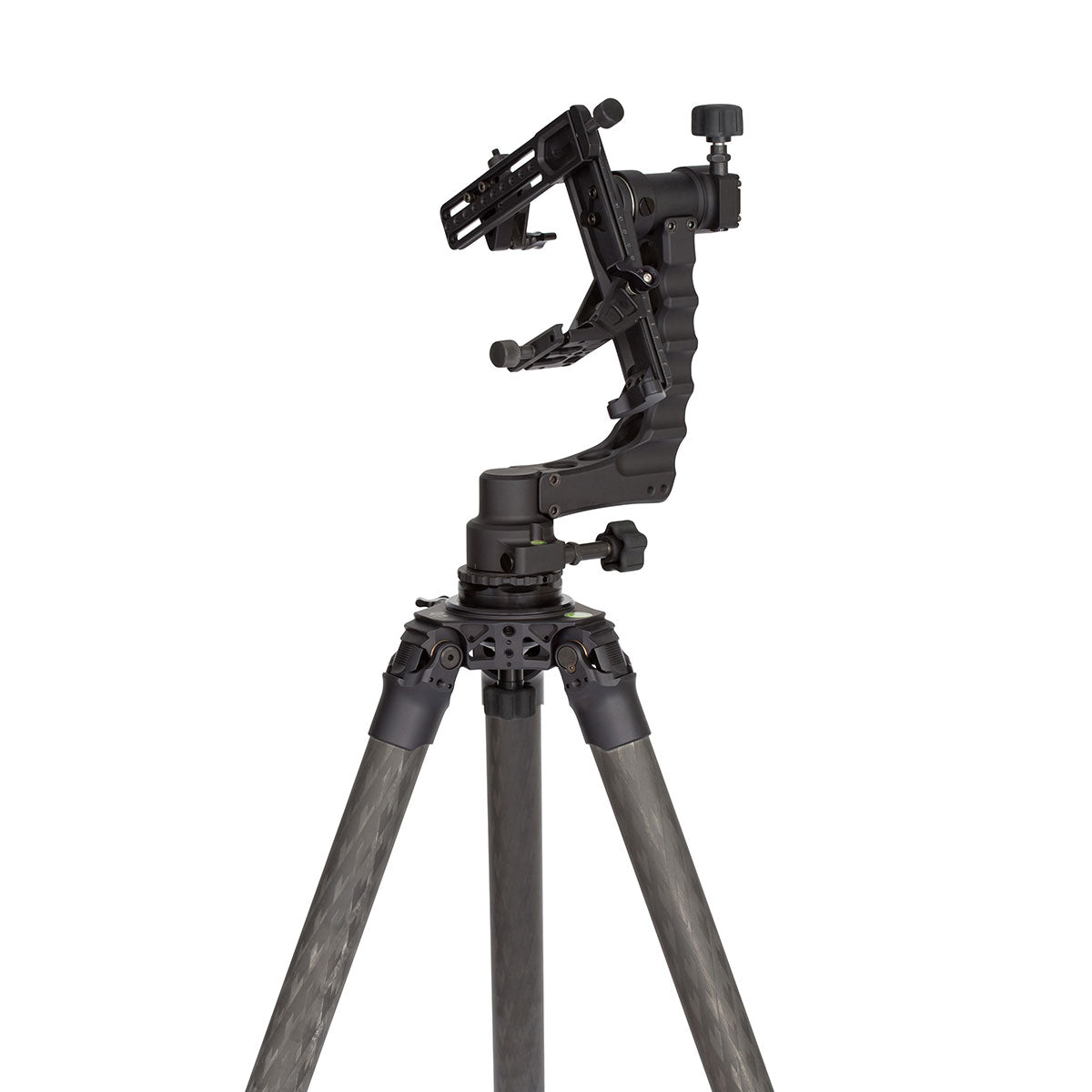

Complete rifle support system: 42mm carbon fiber tripod, leveling base, gimbal head, and scope mount — built for serious shooters.

  • In stock
  • Inventory on the way
Key Features
  • 42mm carbon fiber tripod with 3 leg sections
  • CNC-machined T6061 aluminum components
  • Twist leg locks, built-in spikes, and 3-angle stops
  • Rifle gimbal head with smooth pan & tilt lock
  • Scope mount with Arca clamp & 1/4"-20 screw
  • Leveling base with ±12° movement
  • Load-rated for up to 60 lbs (tripod)
  • Assembled & made in the USA
Technical Specifications

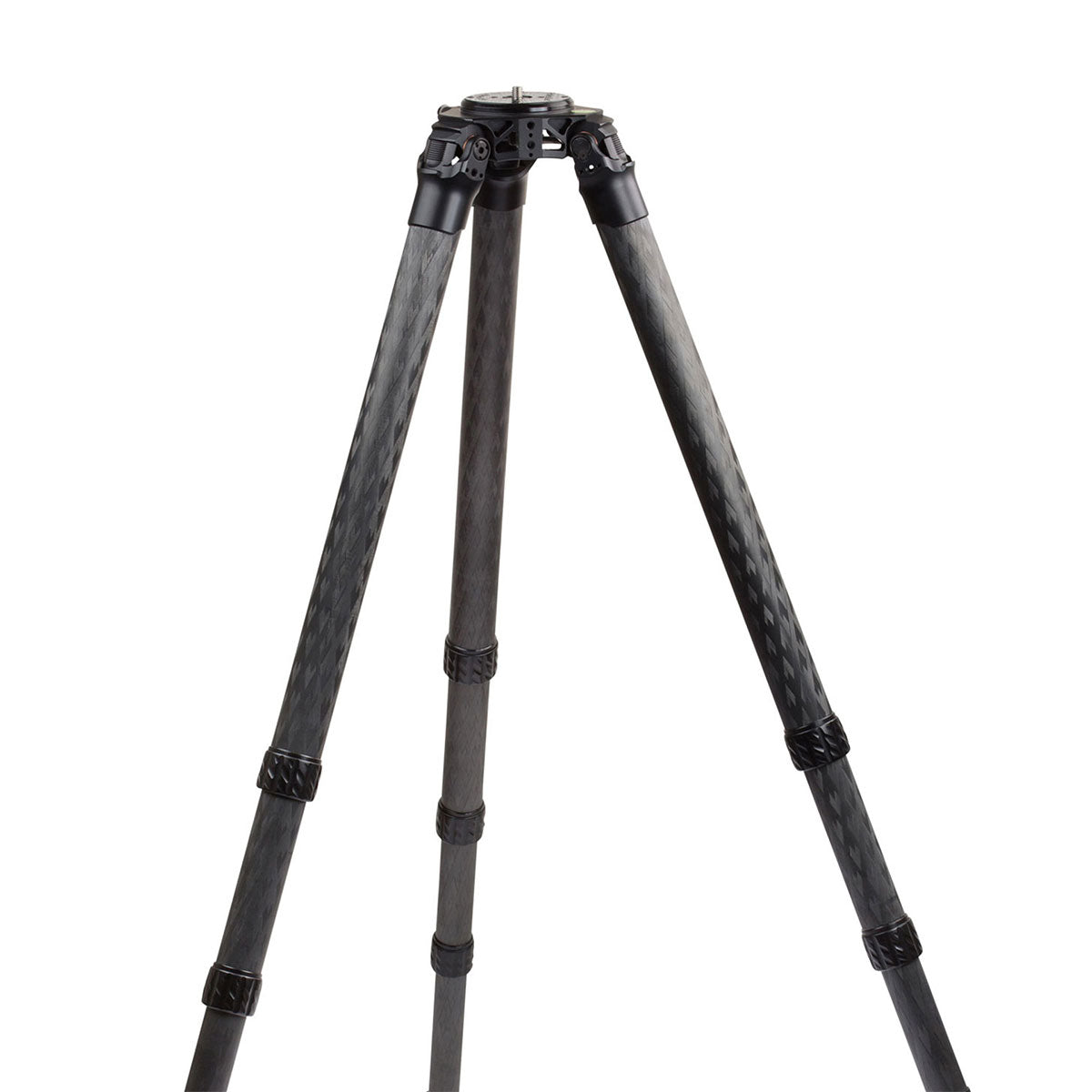

CARBON FIBER RIFLE TRIPOD

  • 42mm diameter legs
  • 10x Layers Carbon Fiber
  • CNC Aluminum Construction
  • 3 Leg Locking Angle Positions
  • 3 Stainless Steel Spikes
  • Max load capacity: 60 lbs

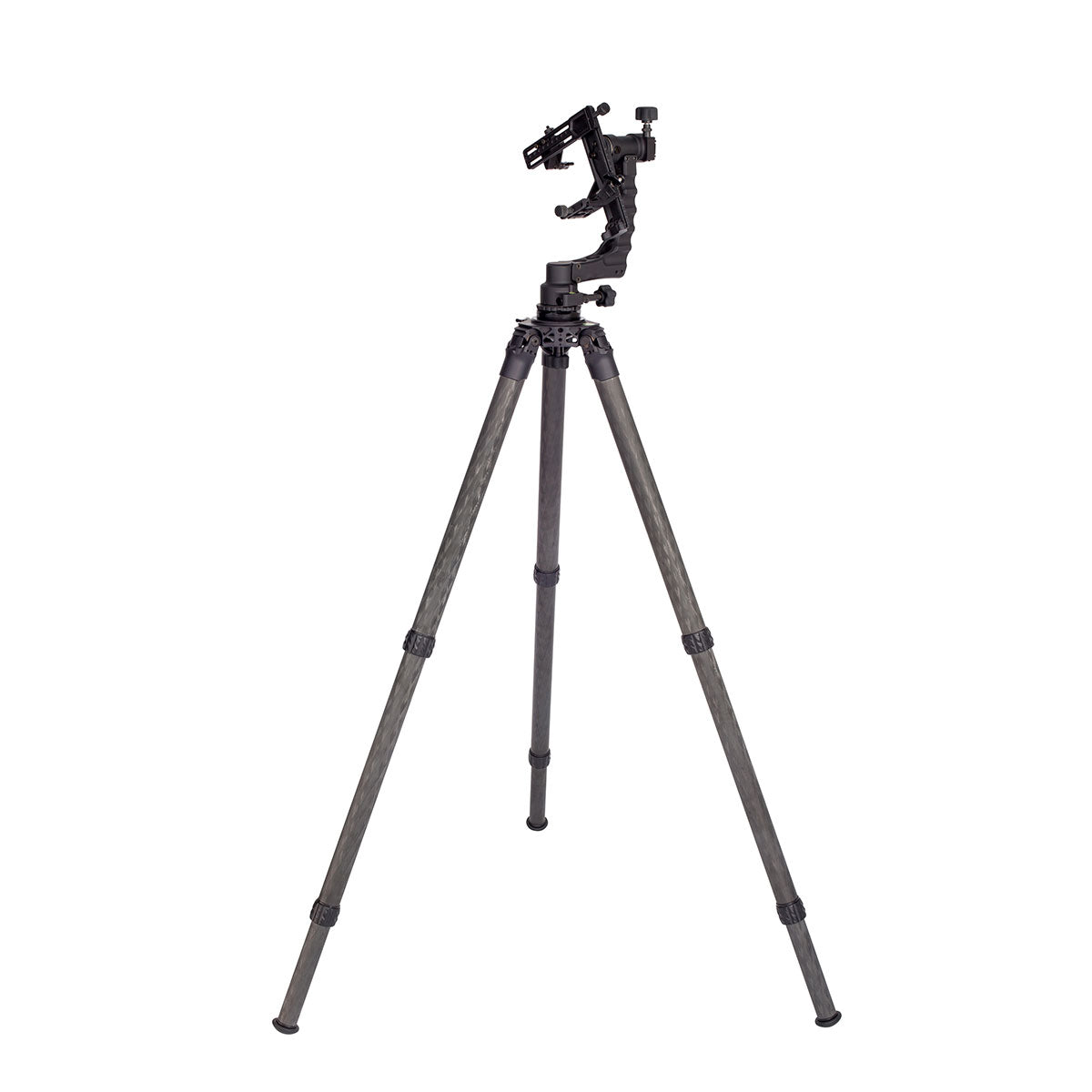

  • Max Height: 58 inches | 147 cm

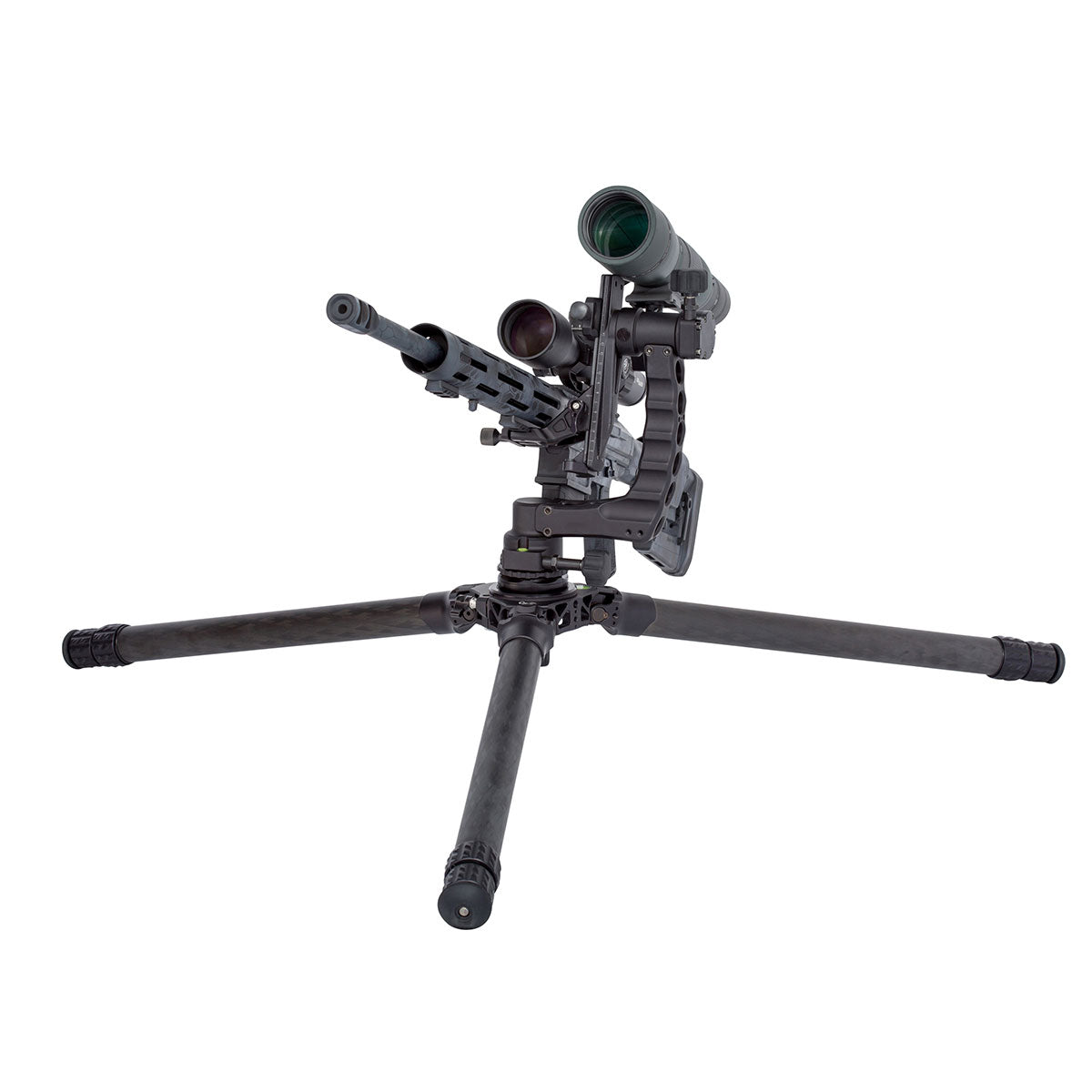

  • Minimum Height: 6.8 inches | 17.25 cm
  • Folded Length: 26 inches | 66 cm
  • Weight: 6.2 lbs | 2813 grams

RIFLE GIMBAL

  • Length: 10.5 inches / 267 mm
  • Width: 3 inches / 76 mm
  • Width with Knob: 4.3 inches / 109 mm
  • Height: 13 inches / 330mm
  • Weight: 5.58 lbs / 2531 grams
  • Max Suggested Rifle Weight: 40 lbs / 18 kg
  • Tripod Mount: 3/8"-16

LEVELING BASE

  • Standard 75mm leveling base
  • Free movement up to 12-degrees each side (24-degrees overall movement)
  • Maximum load capacity: 100 lbs
  • Weight: 236 grams | 0.52 lbs
  • 3/8"-16 top mounting screw
  • CNC-machined aluminum construction
  • Satin black anodized finish

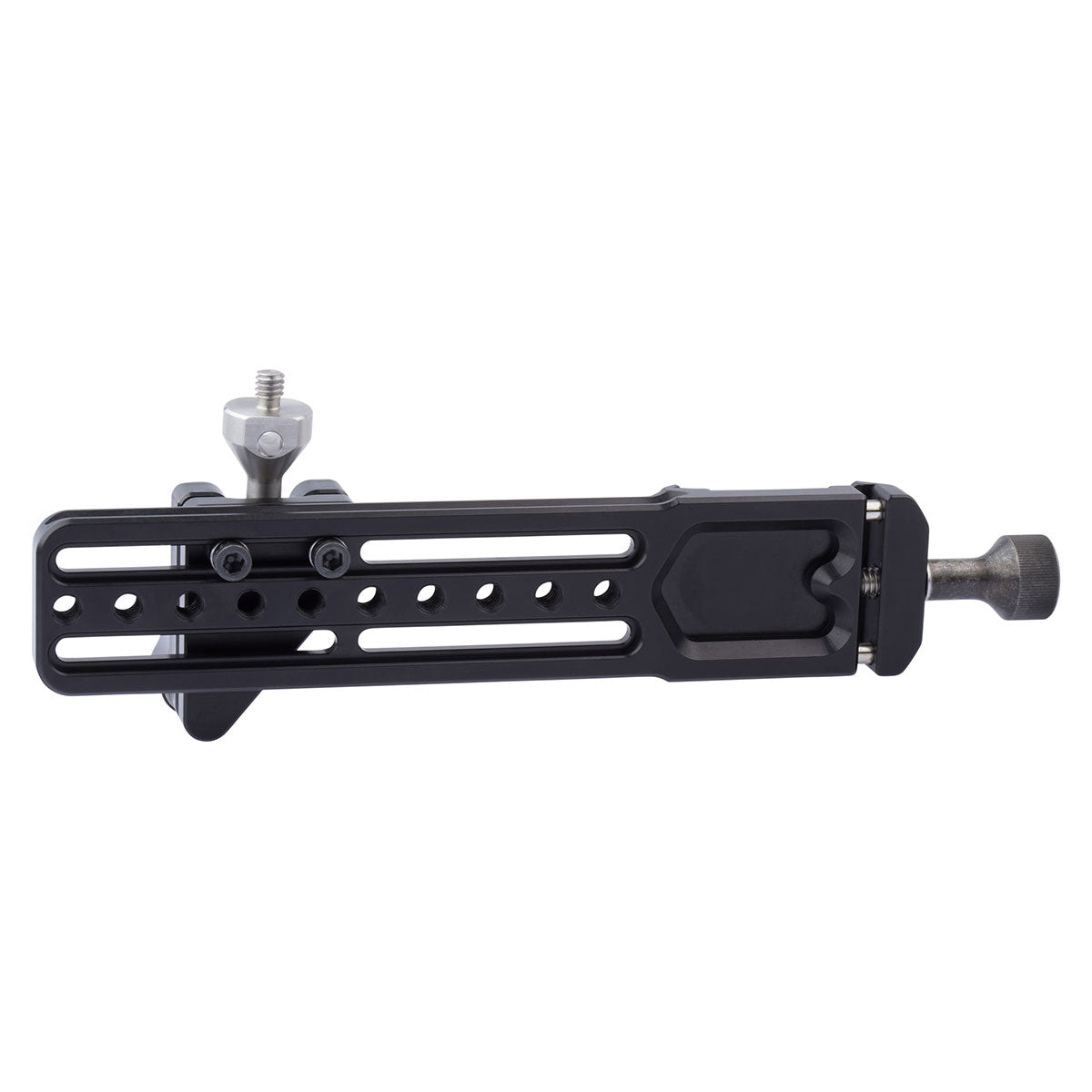

SCOPE MOUNT

  • UNC 1/4"-20 Ball Head Mount
  • Adjustable positioning screws
  • Ball Head knob
  • Arca-type compatible knob
  • T6061 aluminum construction
  • Scratch-resistant finish
  • Adjustable for any position
  • Length: 8.5 inches (216mm) with knob
  • Width: 2 inches (51mm)
  • Height: 2.3 inches (58mm)
  • Weight: 0.76 lbs / 347 grams
  • Load Capacity (Balanced Load): 10 lbs / 4.5 kg
  • Clamp mount: Arca-type
  • Scope-mount: UNC 1/4"-20
Description

All-in-One Precision Shooting Platform

The Grom Defense K01 Heavy-Duty Rifle Support Kit delivers everything you need for stable, accurate, and adaptable shooting in the field — from rugged terrain to long-range target sessions.

At its core is a 42mm carbon fiber tripod built with 10x layered carbon fiber and CNC-machined aluminum, delivering serious load capacity (up to 60 lbs) without excess weight. Whether you’re navigating uneven terrain or locking in for a long-range shot, the tripod provides unwavering support and fast deployment.

The 75mm rifle leveling base allows for up to 24° of smooth tilt so you can quickly level your system even on sloped ground. No guesswork. Just consistent setup for every shot.

Mounted on top is the GD001 Gimbal Head, capable of supporting rifles up to 40 lbs. Its fluid movement and ergonomic design give you precision tracking and lock-in stability, especially useful for scanning targets or transitioning between shots.

You’ll also get the GD005 Scope Mount, featuring an Arca-compatible clamp and 1/4"-20 screw for your optics or accessories. Fully adjustable, rugged, and secure — so you can focus on the shot, not your gear.

Whether you're a long-range marksman, hunter, or tactical shooter, the K01 Kit delivers unmatched confidence, precision, and rugged reliability — Made in the USA.

Frequently Asked Questions

Are Grom Defense products made in the USA?

Yes, all Grom Defense products are proudly made in the USA. We take great care in sourcing high-quality materials and utilizing precision engineering to ensure our products meet the highest standards of durability and performance.

What kind of warranty do you offer on your products?

We stand behind the quality of our products with a comprehensive warranty. All Grom Defense products come with a 5-year warranty that covers manufacturing defects and workmanship. For more details, please refer to our Warranty Policy page.

Can I speak to someone before making a purchase?

Absolutely! Our customer service team is available to answer any questions you may have about our products. Feel free to contact us via email, or live chat. We're here to help ensure you make the best choice for your needs.
