Grom Defense K02 Rifle Support Kit
K02 Rifle Support Kit

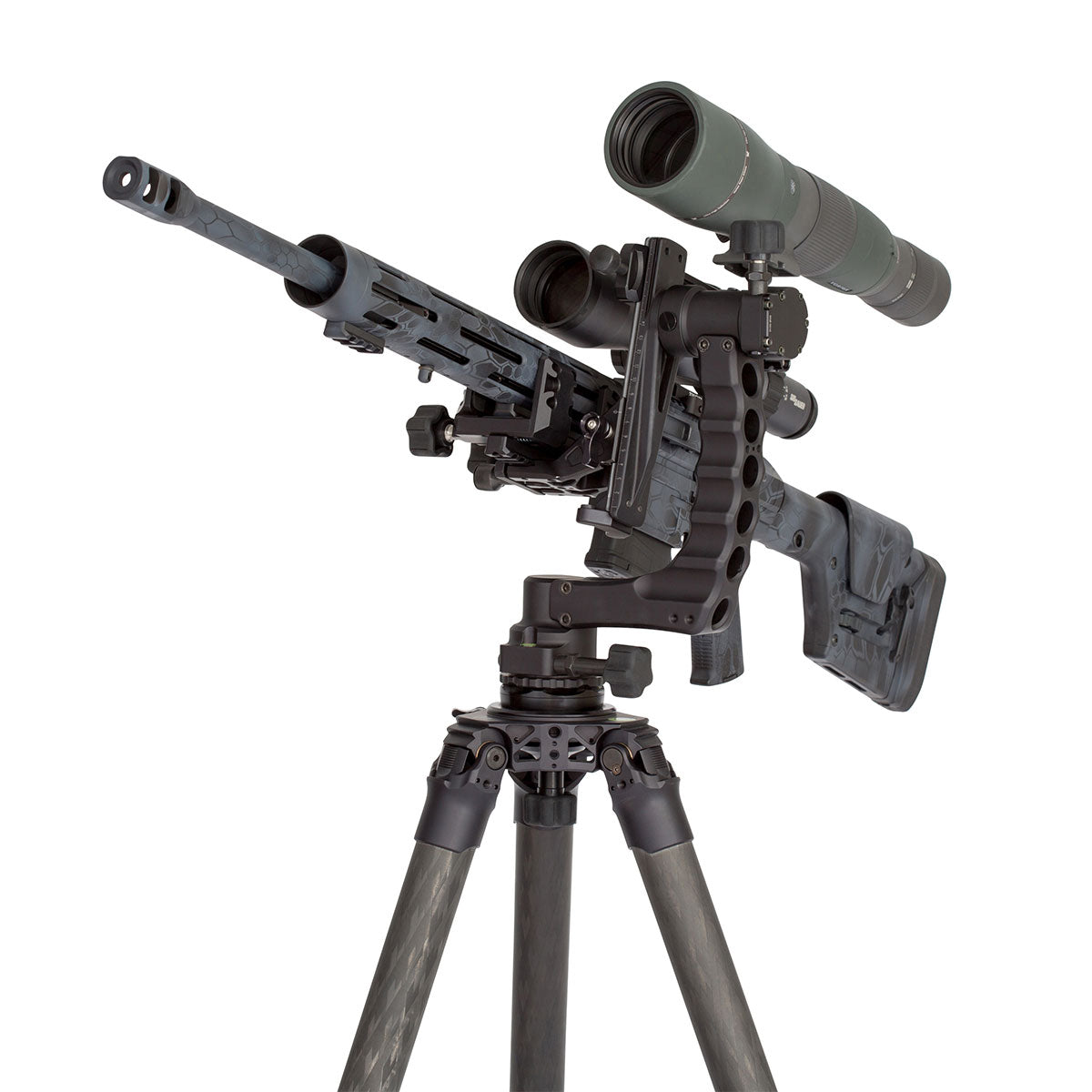

Grom Defense K02 Rifle Support Kit with Rifle Mounted

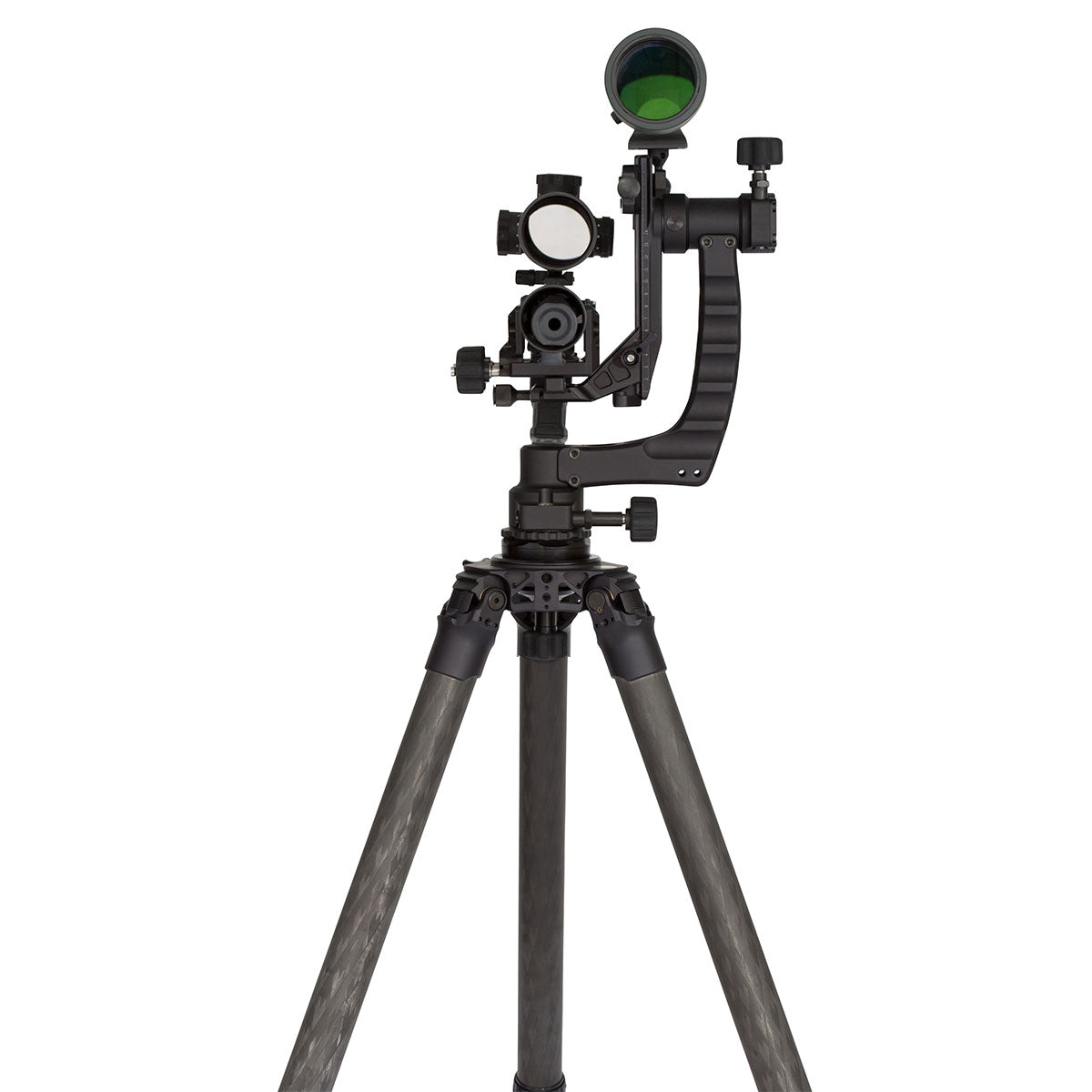

K02 Rifle Support Front View
Close Up K02 Rifle Support

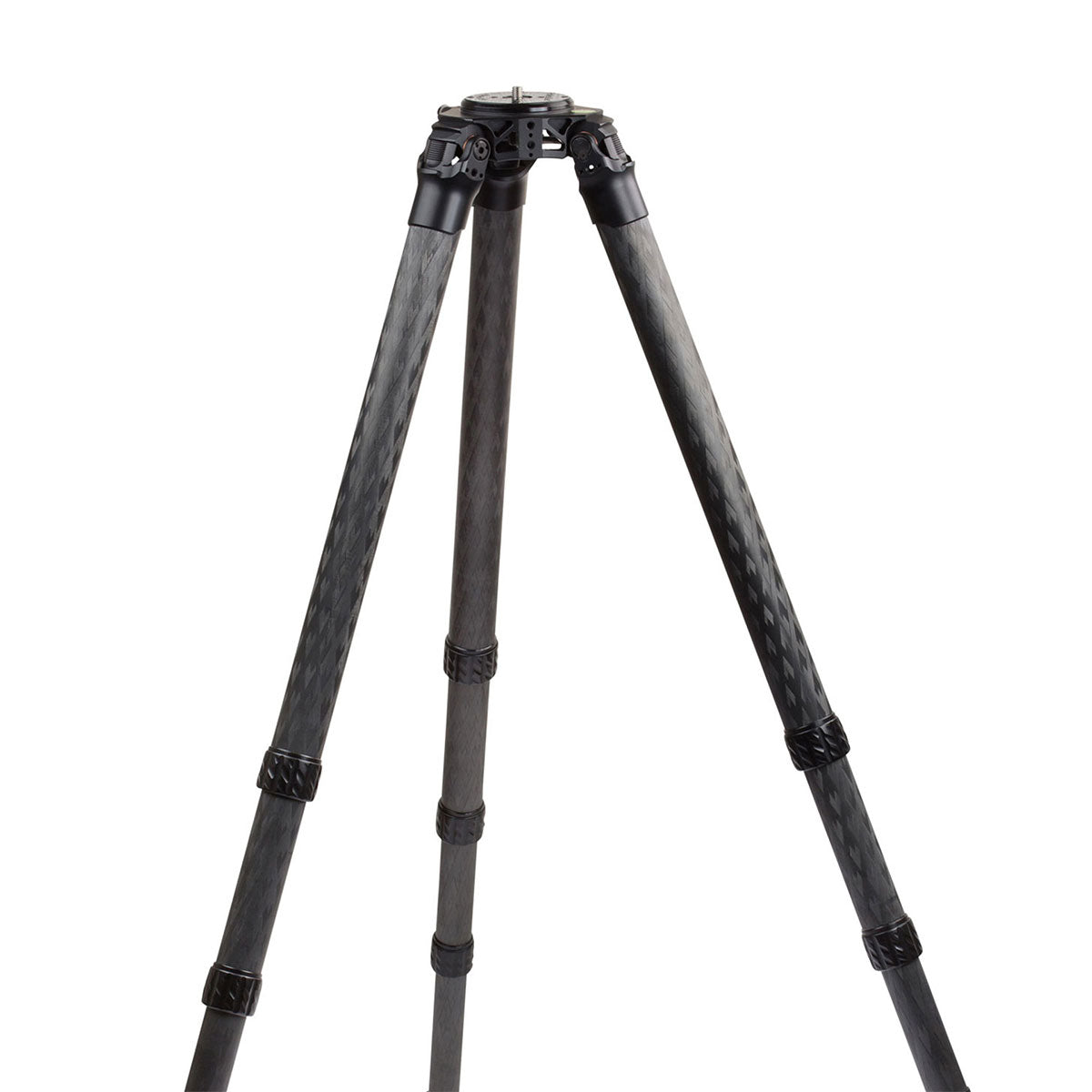

GD02 42mm Rifle Tripod

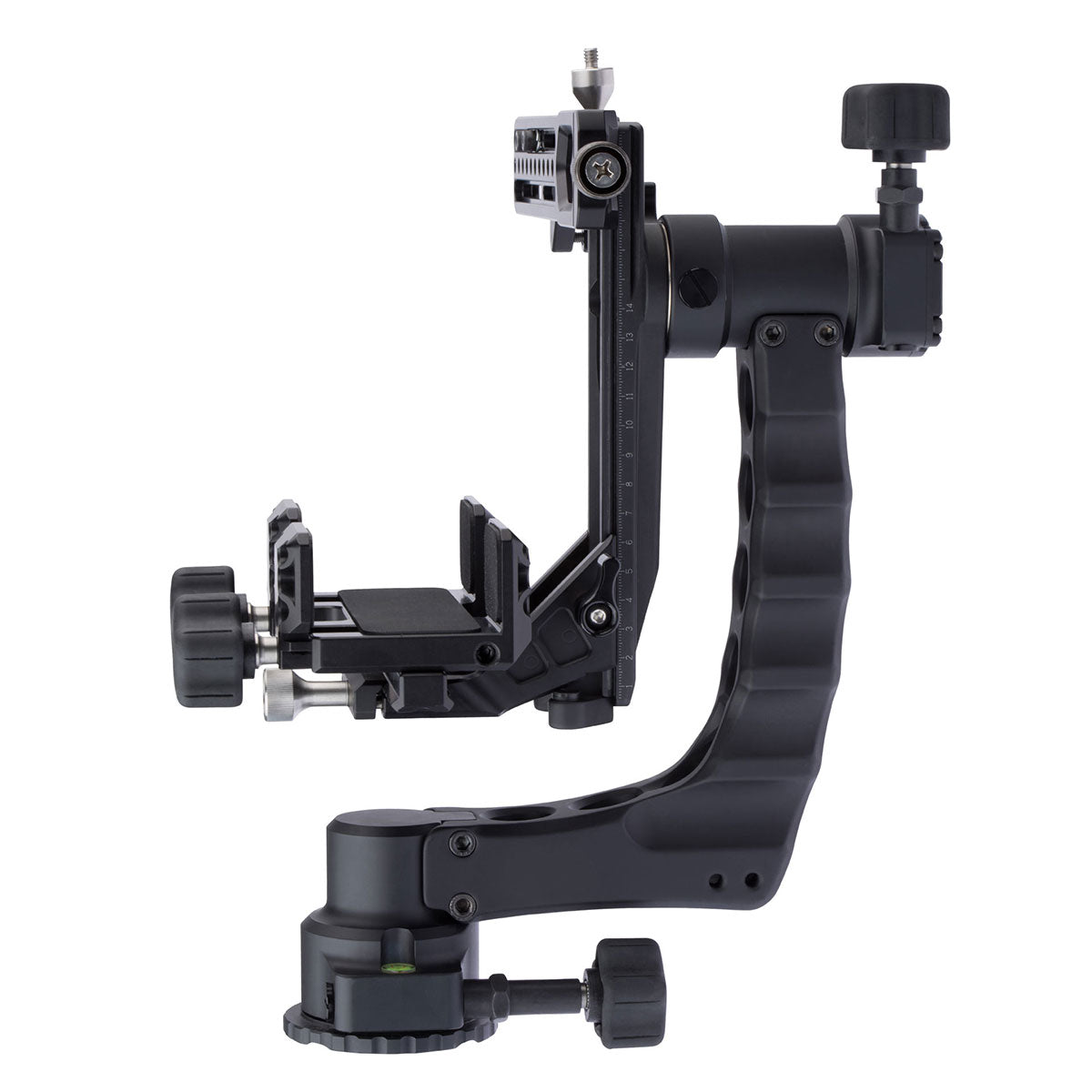

GD01 Rifle Gimbal Head with Clamp and Scope Mount

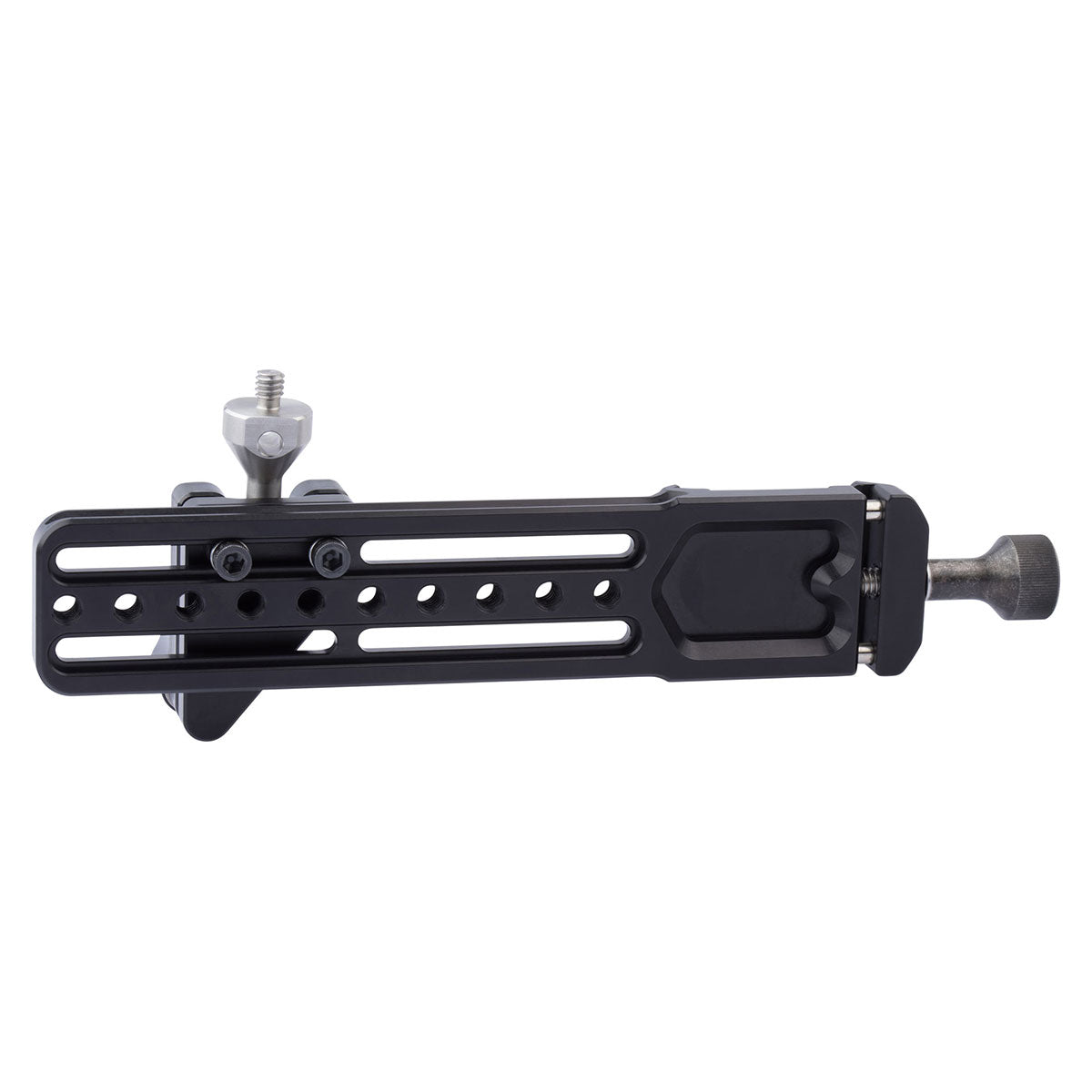

GD05 Rifle Scope Mount

K02 Rifle Support Kit | 42mm Carbon Fiber Tripod, Gimbal Head, Leveling Base, Scope Mount & Rifle Clamp

Regular price $3,145.00
Regular price $2,999.00 Sale price $3,145.00
Shipping calculated at checkout.

All-in-one rifle support system with tripod, leveling base, rifle gimbal, scope mount, and clamp — made for field-tested precision.

  • In stock
  • Inventory on the way
Key Features
  • Complete support: rifle clamp + scope mount included
  • Heavy-duty 42mm tripod with anti-slip leg locks
  • Rifle gimbal head with fluid pan/tilt motion
  • Leveling base for up to 24° of precise movement
  • CNC-machined T6061 aluminum & 10x carbon fiber
  • Multiple attachment options: NATO, Arca, Picatinny
  • Built for tactical, hunting, and long-range setups
  • Made in the USA
Technical Specifications

CARBON FIBER RIFLE TRIPOD

  • 42mm diameter legs
  • 10x Layers Carbon Fiber
  • CNC Aluminum Construction
  • 3 Leg Locking Angle Positions
  • 3 Stainless Steel Spikes
  • Max load capacity: 60 lbs
  • Max Height: 58 inches | 147 cm
  • Minimum Height: 6.8 inches | 17.25 cm
  • Folded Length: 26 inches | 66 cm
  • Weight: 6.2 lbs | 2813 grams

LEVELING BASE

  • Standard 75mm leveling base
  • Free movement up to 12-degrees each side (24-degrees overall movement)
  • Maximum load capacity: 100 lbs
  • Weight: 236 grams | 0.52 lbs
  • 3/8"-16 top mounting screw
  • CNC-machined aluminum construction
  • Satin black anodized finish

SCOPE MOUNT

  • Length: 8.5 inches | 216 mm with knob
  • Width: 2 inches | 51 mm
  • Height: 2.3 inches | 58mm
  • Weight: 0.76 lbs | 347 grams
  • Load Capacity for balanced load: 10 lbs | 4.5 kg
  • Clamp Mount: Arca-type
  • Scope Mount: UNC 1/4"-20

RIFLE CLAMP

  • Length: 5 inches | 127mm
  • Width: 5 inches | 127mm with knobs
  • Height: 2.8 inches | 71mm
  • Weight: 1.2 lbs | 551 grams
  • Load Capacity for Balanced Load: 50 lbs | 22 kg
  • Mount: Picatinny Rail

LARGE RIFLE GIMBAL HEAD

  • Length: 10.5 inches / 267 mm
  • Width: 3 inches / 76 mm
  • Width with Knob: 4.3 inches / 109 mm
  • Height: 13 inches / 330mm
  • Weight: 5.58 lbs / 2531 grams
  • Max Suggested Rifle Weight: 40 lbs / 18 kg
  • Tripod Mount: 3/8"-16
Description

Field-Ready Rifle Support with Full Mounting Versatility

The Grom Defense K02 Rifle Support Kit delivers everything serious marksmen and tactical shooters need — combining full rifle support, optical precision, and rapid setup in one complete system.

At the center is the GD002 Carbon Fiber Tripod, built with 42mm diameter legs, CNC-machined aluminum, and a 60 lb load capacity. Its 10x layer carbon fiber construction provides exceptional stability while remaining lightweight and packable for long treks.

The 75mm leveling base (GD013) adds fast, tool-free adjustments — allowing up to 24 degrees of smooth tilt so you can shoot level on rugged or sloped terrain.

Included are both the GD004 Rifle Clamp (Picatinny) and GD005 Scope Mount (Arca-type) — giving you flexible control for both rifle and optic positioning. Whether you're locking in a rifle, sighting through glass, or scanning targets at range, you’ll have secure, stable mounts for both.

The final component: the GD001 Rifle Gimbal Head — precision-built to handle rifles up to 40 lbs with smooth pan and tilt movement, thanks to sealed ball bearings and an ergonomic locking system.

Whether you're on a hunt, at a match, or setting up overwatch in the field, the K02 Kit is your go-to for total stability and tactical adaptability — Made in the USA.
