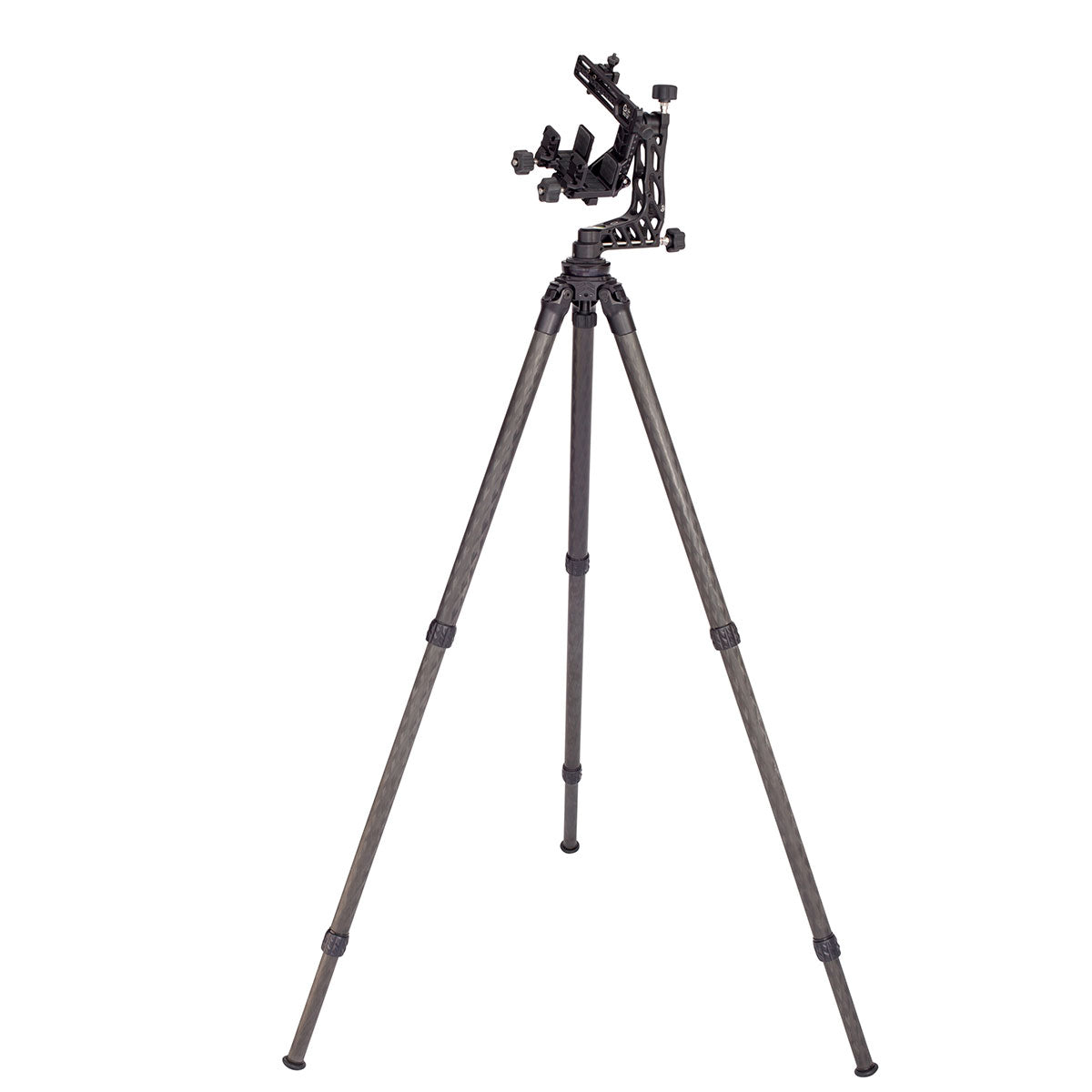

Grom Defense K04 Small Rifle Support Kit Fully Extended

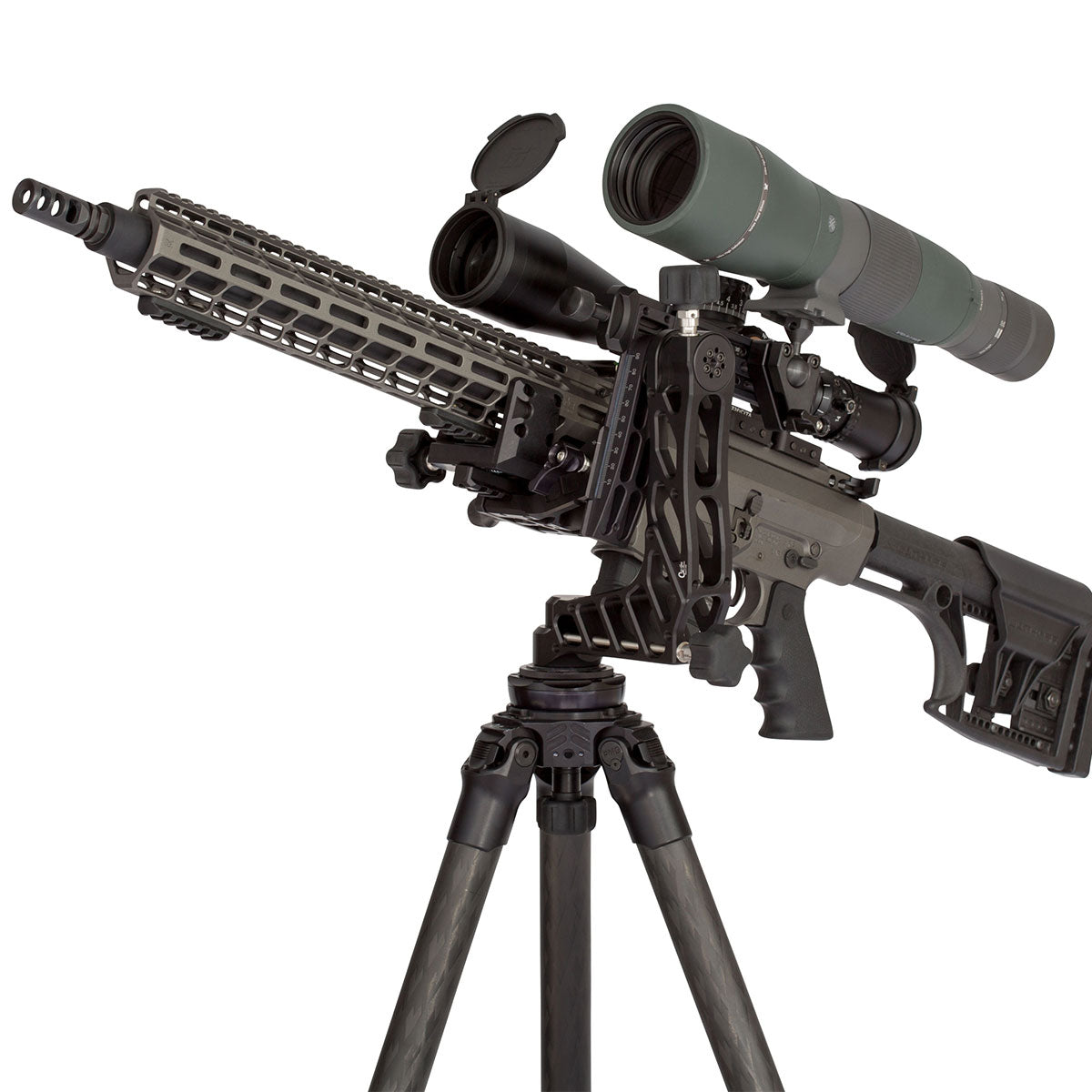

Grom Defense K04 Rifle Mounted Close Look

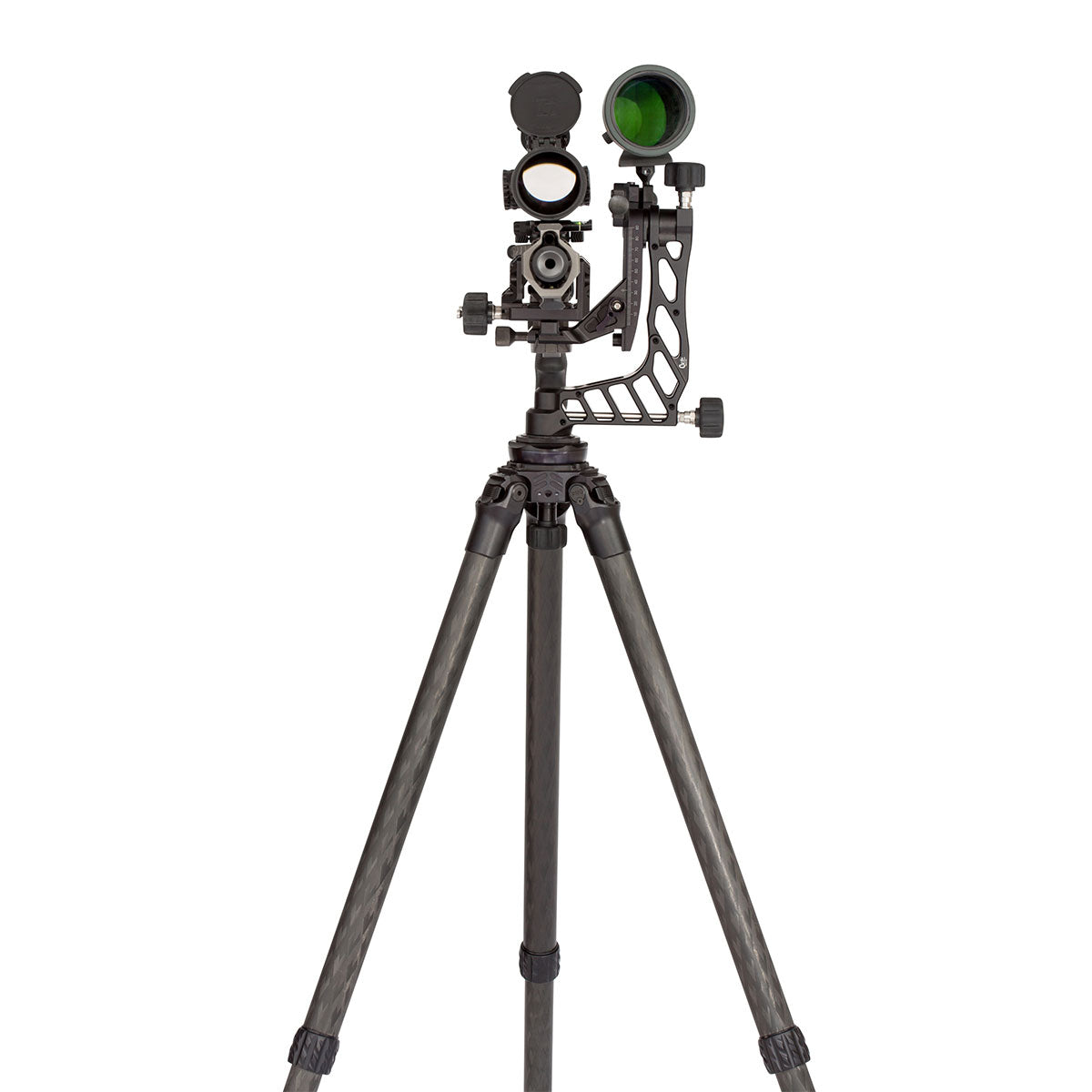

K04 with Rifle Front View

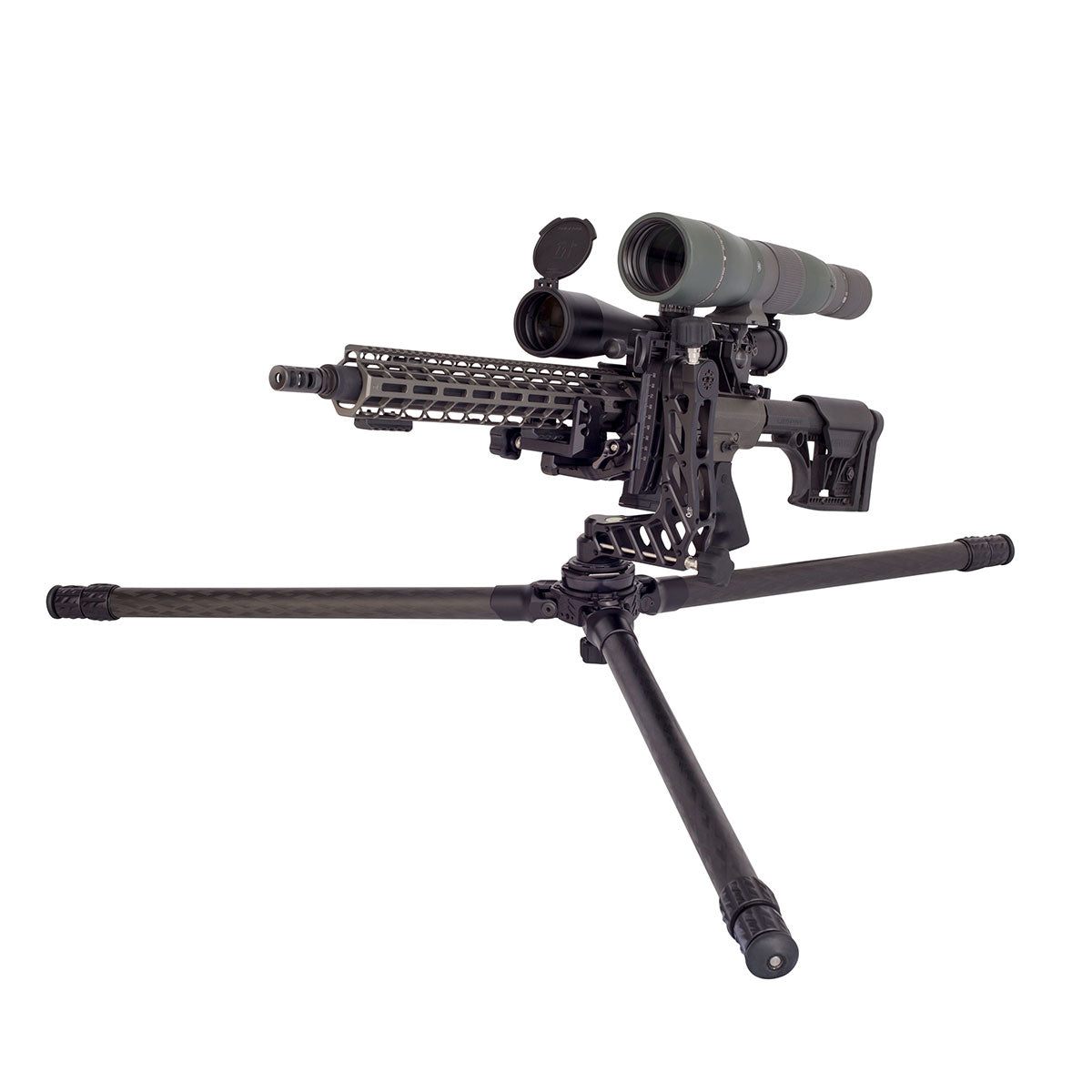

Grom Defense K04 Small Rifle Support Kit Down Low

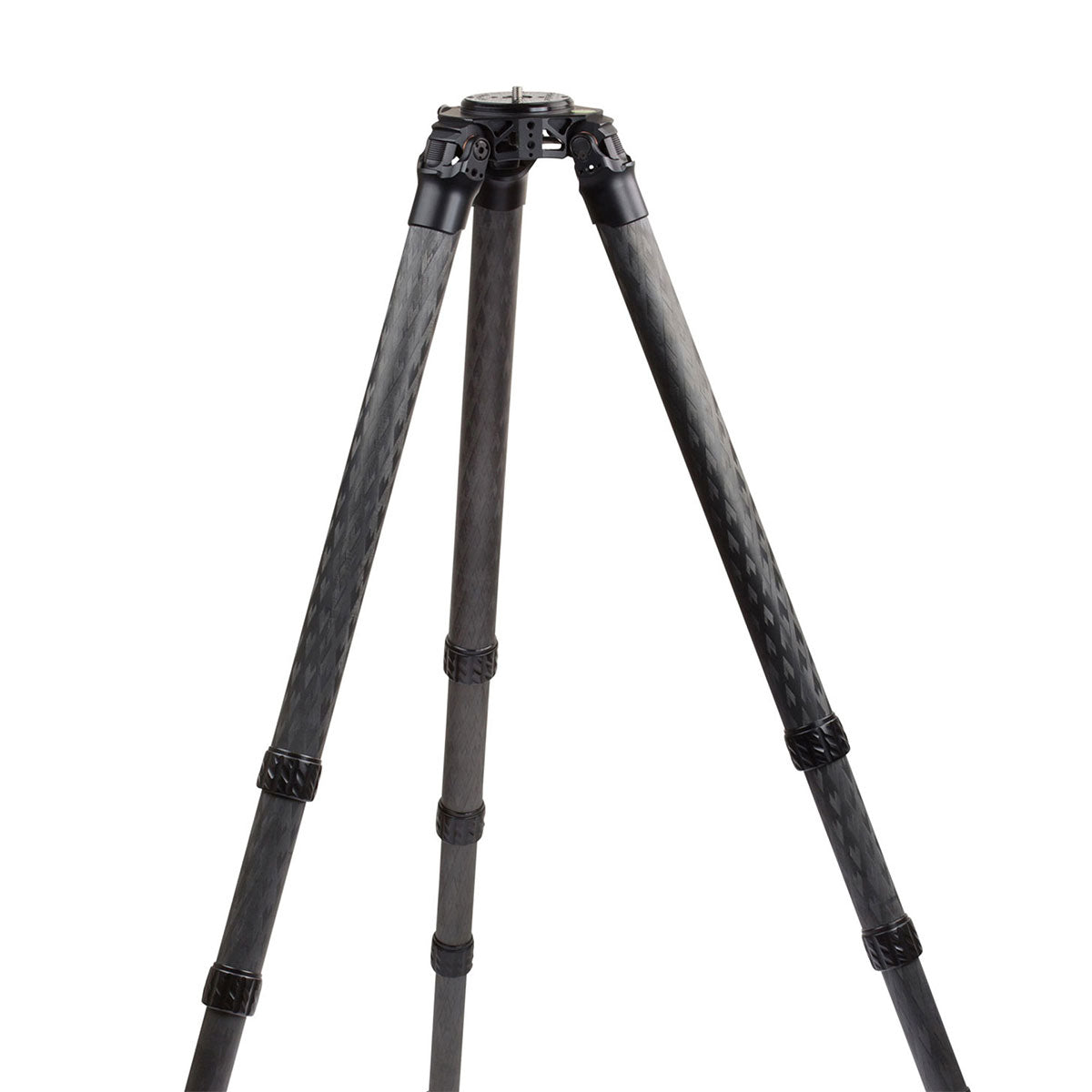

GD07 Rifle Tripod

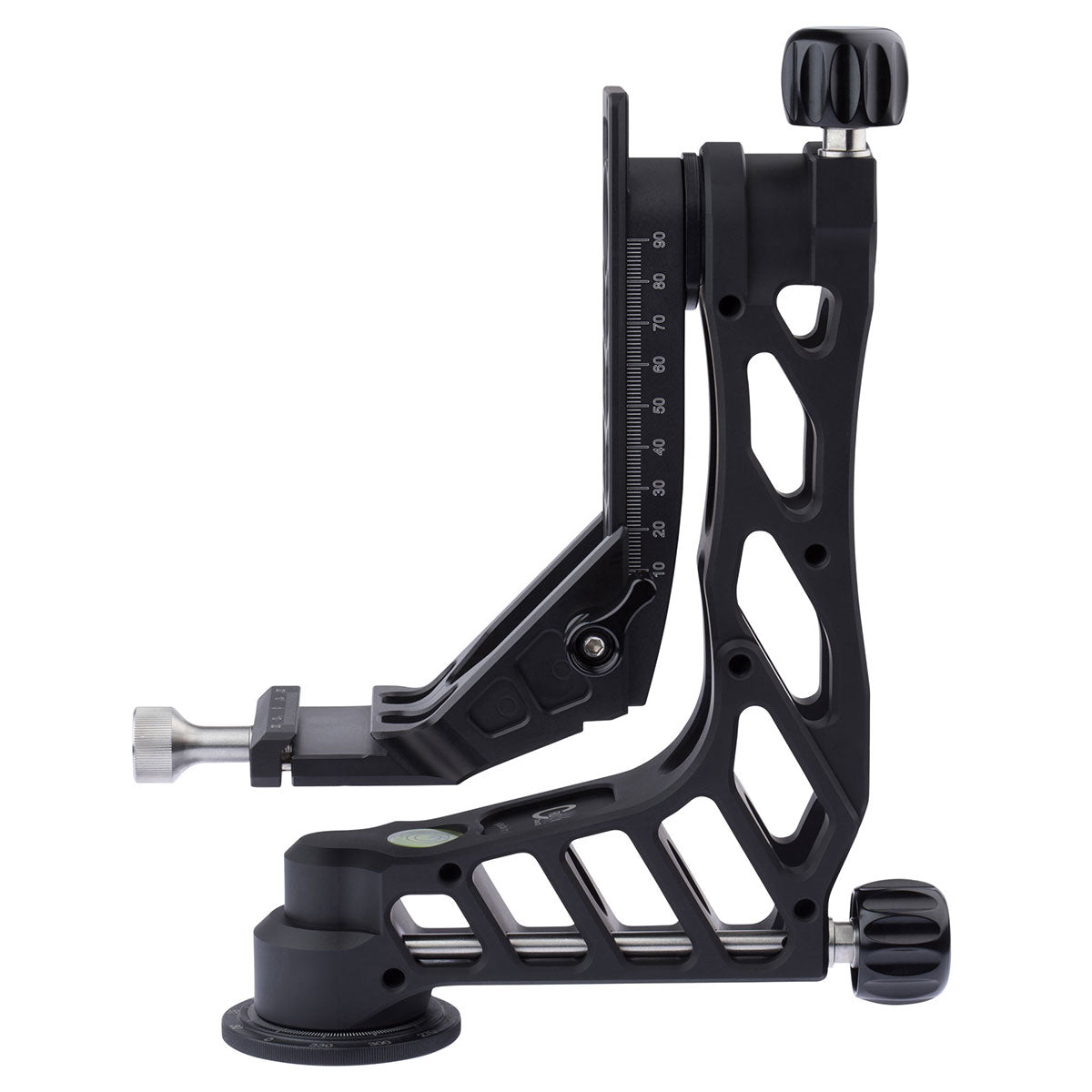

GD06 Rifle Gimbal Head

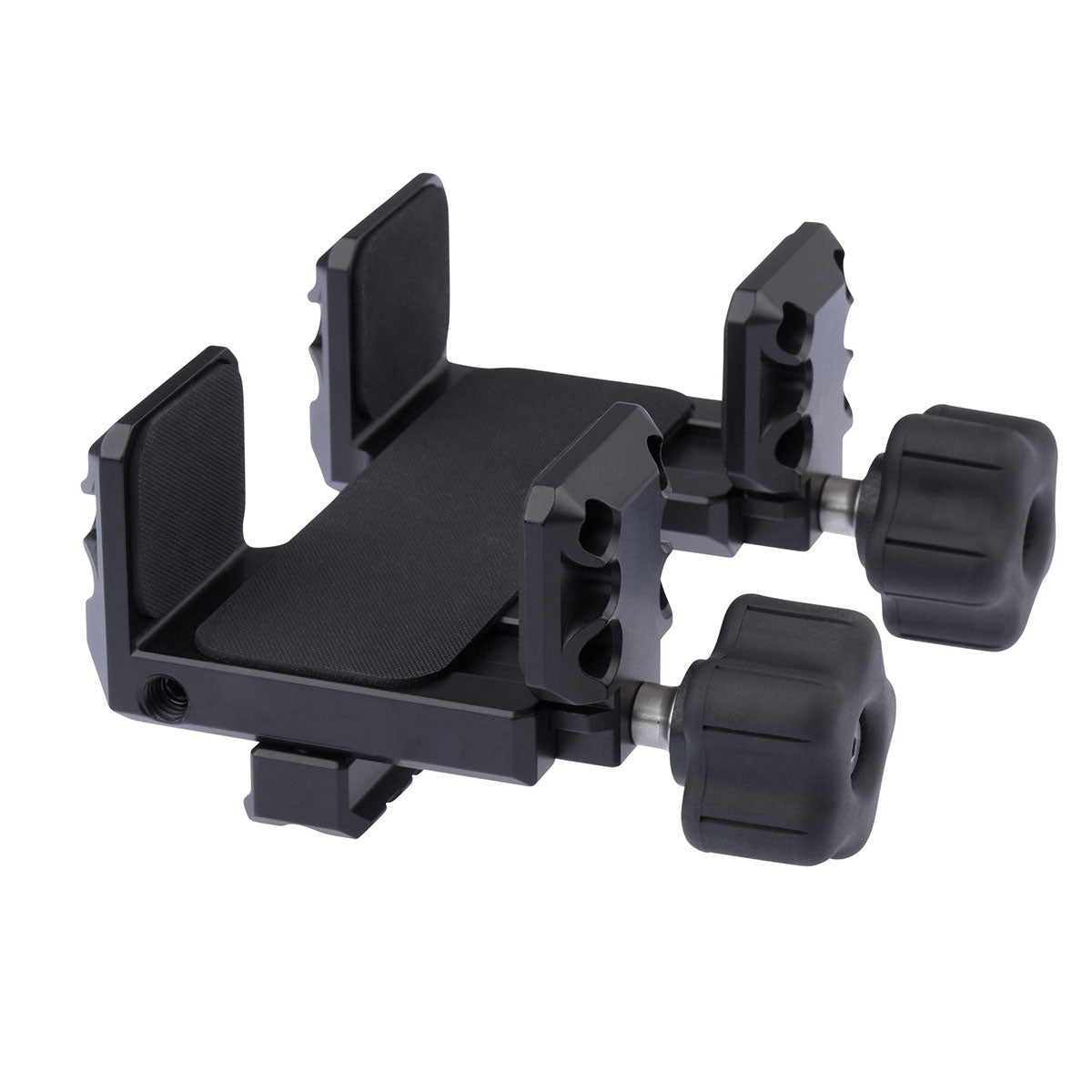

GD04 Rifle Clamp Saddle

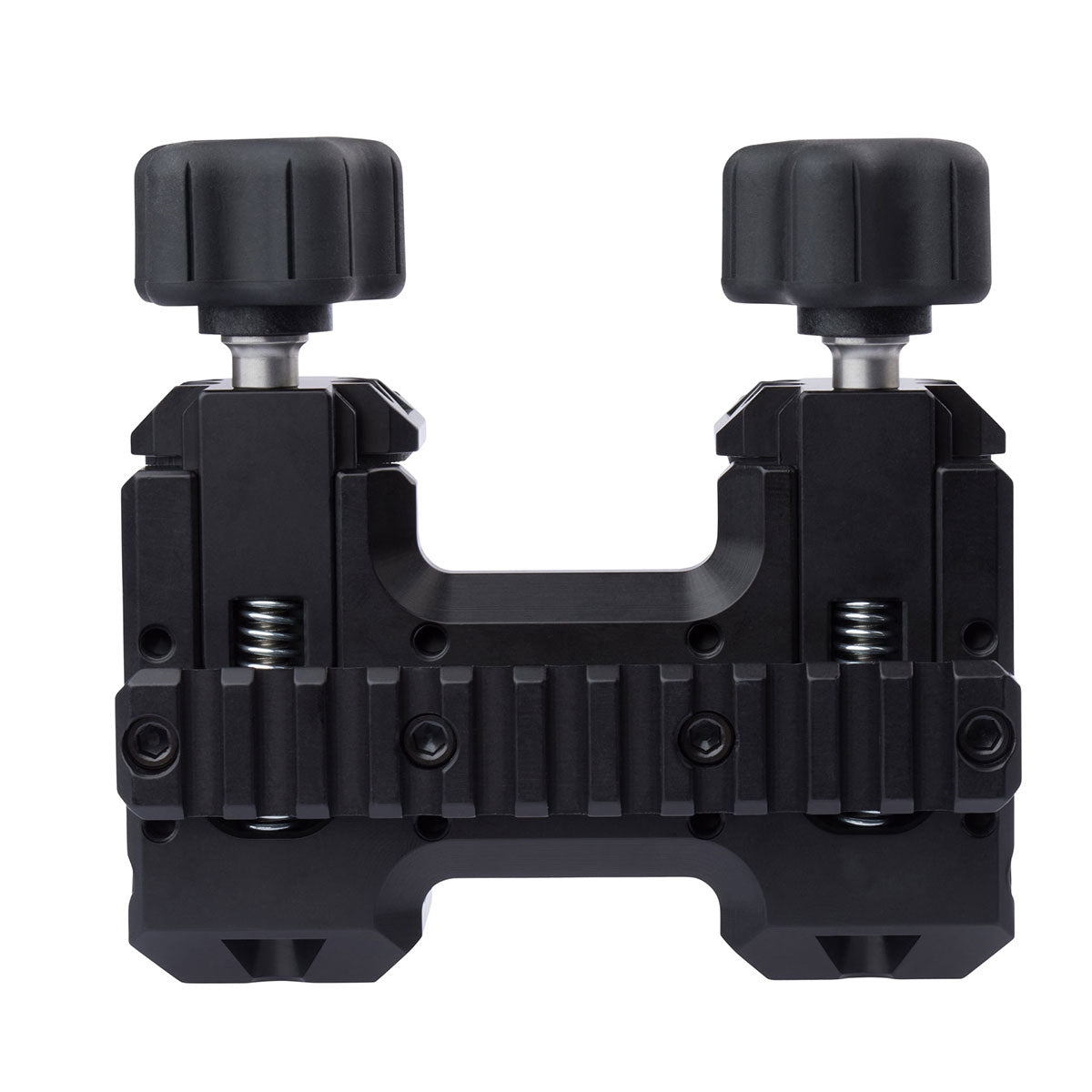

GD04 Rifle Clamp bottom biew

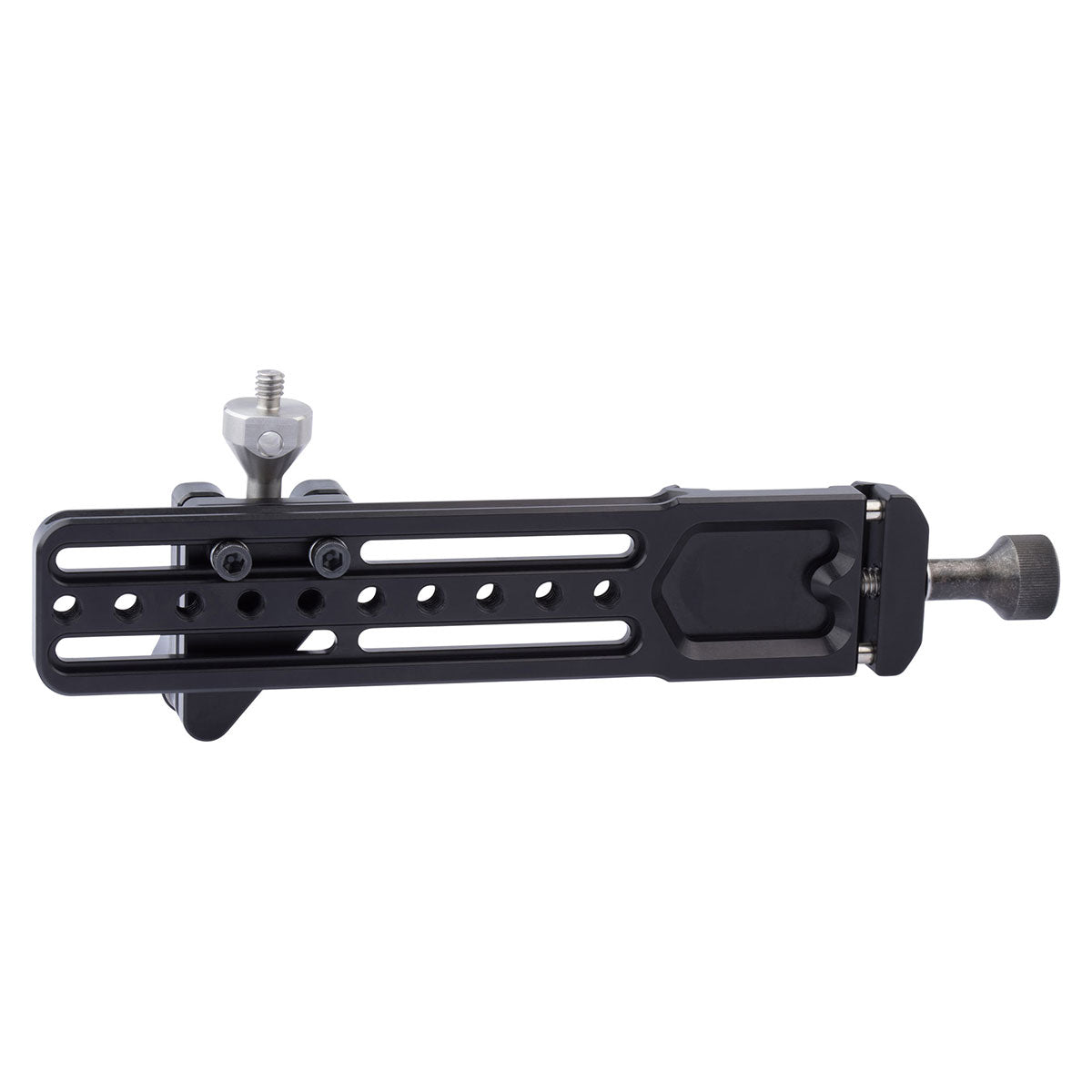

GD05 Rifle Scope Mount

K04 Small Rifle Support Kit | 34mm Tripod, Leveling Base, Scope Mount, Rifle Clamp & Gimbal Head

$2,475.00
$2,475.00
Shipping calculated at checkout.

Full-feature rifle support in a lightweight, compact package—ready for the field.

  • In stock
  • Inventory on the way
Key Features
  • Lightweight 34mm carbon fiber tripod with 3-angle stops
  • Small rifle gimbal head with smooth motion and secure lock
  • Rifle clamp with Picatinny-type grip pads
  • Arca-compatible scope mount with ¼"-20 thread
  • 75mm leveling base with 24° movement
  • CNC-machined aluminum and stainless components
  • Compact, portable, and built to last
  • Made in the USA
Technical Specifications

CARBON FIBER RIFLE TRIPOD

  • 34mm diameter legs
  • 10x Layers Carbon Fiber
  • CNC Aluminum Construction
  • 3 Leg Locking Angle Positions
  • 3 Stainless Steel Spikes
  • Max load capacity: 35 lbs
  • Max Height: 59.3 inches | 150 cm
  • Minimum Height: 3.8 inches | 9.7 cm
  • Folded Length: 25.1 inches | 64 cm
  • Weight: 4.66 lbs | 2115 grams

LEVELING BASE

  • Standard 75mm leveling base
  • Free movement up to 12-degrees each side (24-degrees overall movement)
  • Maximum load capacity: 100 lbs
  • Weight: 236 grams | 0.52 lbs
  • 3/8"-16 top mounting screw
  • CNC-machined aluminum construction
  • Satin black anodized finish

SCOPE MOUNT

  • Length: 8.5 inches | 216 mm with knob
  • Width: 2 inches | 51 mm
  • Height: 2.3 inches | 58mm
  • Weight: 0.76 lbs | 347 grams
  • Load Capacity for balanced load: 10 lbs | 4.5 kg
  • Clamp Mount: Arca-type
  • Scope Mount: UNC 1/4"-20

RIFLE CLAMP

  • Length: 5 inches | 127mm
  • Width: 5 inches | 127mm with knobs
  • Height: 2.8 inches | 71mm
  • Weight: 1.2 lbs | 551 grams
  • Load Capacity for Balanced Load: 50 lbs | 22 kg
  • Mount: Picatinny Rail

SMALL RIFLE GIMBAL HEAD

  • Length: 8.48 inches | 215 mm
  • Width: 3.10 inches | 79 mm
  • Height: 9.75 inches | 248 mm
  • Weight: 2.4 lbs | 1088 grams
  • Max Suggested Rifle Weight: 18 lbs | 8 kg
  • Tripod Mount: 3/8"-16
Description

All-In-One Support for Compact Precision

The K04 Small Rifle Support Kit is built for shooters who demand performance without bulk. Whether you’re trekking into the backcountry or locking onto targets at the range, this kit delivers maximum support in a minimalist footprint.

At its core is a 34mm carbon fiber tripod—engineered with 10-layer carbon fiber legs and CNC-machined aluminum joints for unbeatable strength-to-weight performance. Designed for rugged terrain, it features three leg angle stops, twist locks, and stainless steel spikes for stable positioning no matter the conditions.

The standard 75mm leveling base offers 24° of smooth tilt adjustment, making it easy to level your rifle on uneven ground. No tools, no delays—just dial it in and shoot with confidence.

A secure rifle clamp with a Picatinny mount ensures your firearm stays locked in place while the Arca-compatible scope mount gives you fast, flexible placement for your optics.

Finally, the small rifle gimbal head allows fluid pan and tilt movement, perfect for scanning, tracking, or quick realignment—all while supporting rifles up to 18 lbs.

Whether you’re a mobile hunter, tactical shooter, or weekend marksman, the K04 Kit provides compact, modular support in one lightweight setup—Proudly Made in the USA.
